Evoke ST3

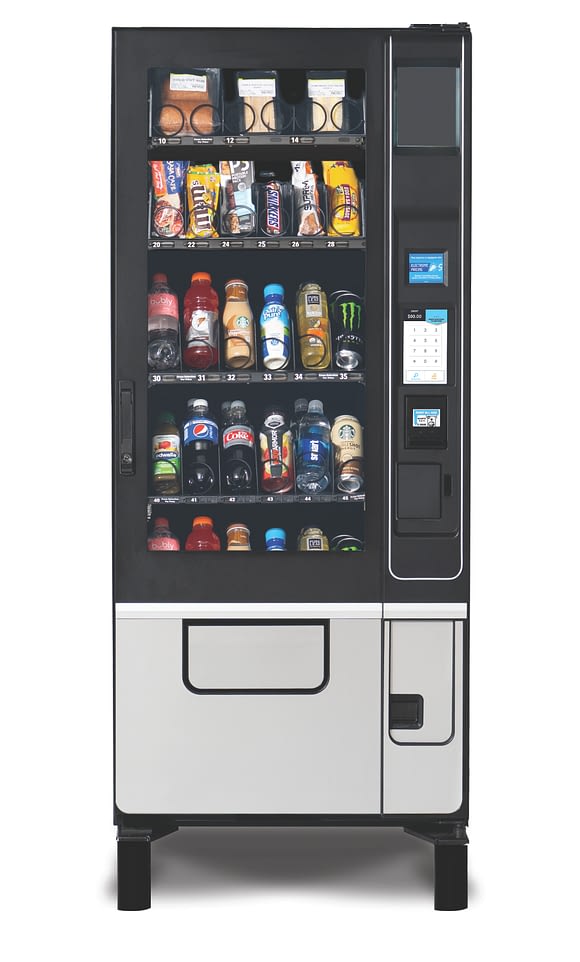

The Evoke ST3 Food Configuration Vending Machine From U-Select-It with 7 inch display

Overview

The Evoke ST3 has a small footprint, but packs a punch with its style and design. Vend snacks, refrigerated food, and cold beverages with this versatile variable temperature machine. This sleek vending machine offers versatility with up to 36 selections and a product capacity of up to 36 items.  It is capable of vending refrigerated food, snacks, and cold beverages with various package sizes and form factors such as boxes, cans and bottles.

With the single temperature feature of the Evoke ST3 you can vend a variety of refrigerated food and cold beverage products.  As with all Evoke Combo models, the Evoke ST3 features soft coat, heated glass that is ideal for high humidity locations and is health safety programmable by selection, range, or row.

The Evoke ST3 is fully ADA compliant and the standard features do not stop there. It comes with enhanced LED lighting and iVend guaranteed product delivery. If an item does not vend correctly the first time, your customer will have the opportunity to try again or vend an entirely new product.

Plus, the Evoke ST3 comes with a standard 3.5” full-color display allowing operators to display pricing information and nutritional information on the screen. Upgrade to the 7” full-color touch screen display to offer shopping cart mode to purchase up to three items in one transaction, a product browsing capability, and advertising options for static and video content.

This merchandiser comes standard with cash acceptance and PayRange, a leading mobile payment system.  Plus, never lose out on a sale again due to payment acceptance limitations by adding an optional card reader to accept debit/credit cards and mobile wallets. You can also brand your Evoke ST3 with a graphic wrap to attract customers.

Standard Features

Product Merchandising
Flex Shelf Technology
USI vendors feature the most versatile trays on the market with features that make a difference in your bottom line.
  • Tilting shelves for easy loading
  • Quick change motors and dividers for in-field reconfiguration
  • Adjustable snack and candy selections
Product Merchandising
LED Showcase Lighting
Enhances product presentation and promotes sales 10% or more.
Payment Systems
Extra Peripheral Opening and MDB Support
Standard secondary peripheral opening lets you add your payment or ID system of choice with MDB communication to control system.
Payment Systems
Onboard PayRange Mobile Payment System (US Only)
PayRange is a leading cashless payment technology that utilizes Bluetooth technology and is app-based to provide payment through customers' mobile devices. Standard on Evoke series equipment.
Accessibility
Controls and Payment Systems at ADA Levels
All customer interfaces and payment systems are at or below 2012 Americans with Disabilities Act mandated side access height of 46” from the floor.
Accessibility
Delivery Assist
Product is delivered at 15" via lift mechanism. Operates with one hand.
Consumer Interfaces
Braille Identified Keypad
All equipment comes standard with Braille identified keypads for sight impaired use and operator programming.
Safety and Security
iVend® Delivery Sensor System
Infrared sensor system virtually eliminates misvends and ensures that your customers receive their products or their money back.
Safety and Security
Door Switch
Option on non-refrigerated models for use with controller features and add-on telemetry logging door opening events and homing of product coils.
Safety and Security
Health Safety Feature
USI refrigerated and frozen merchandisers feature health safety temperature sensing technology to prevent the sale of perishable food if the air temperature inside the food vendor compartment rises above the Health Safety temperature limit for more than 15 minutes.
Quality and Service
2 Year Limited Parts Warranty
U-Select-It warrants each of its vending machines to the original purchaser for indoor use under the following provisions: VendNet, U-Select-It’s warranty and service administrator, will replace or repair any part covered by the warranty which fails due to a defect in material or workmanship for two years*
Quality and Service
Manufactured in the USA
USI prides itself on manufacturing the highest quality automated dispensing equipment right in the heart of the midwest with quality components, assembled by skilled technicians dedicated to your success.
Quality and Service
Lifetime Toll-Free Technical Assistance
Each USI product is backed by toll-free technical assistance for the life of the product. Should you have questions on technical, parts or service issues help is only a phone call away.
Sustainability
ENERGY STAR® Rated
Many USI refrigerated products meet Department of Energy ENERGY STAR® rating. Consult your distributor for your needs.
Sustainability
Eco-friendly Insulation Process
BASF Autofroth® foaming process features superior insulating properties and zero-ozone-depleting technology, utilizing blowing agents approved by the EPA’s SNAP program.
Control Systems
DEX Capable
Use DEX capable upload/download devices for sales and machine service information.
Control Systems
Full Sales and Accounting Features
U-Select-It vending equipment features control systems designed for easy and flexible pricing, payment system control and monitoring, accountability and service.
  • Price setting by selection, row or machine
  • Free vend and Combo vend modes
  • Flexible space to selection setting
  • Time of day discounting
  • Time of day shutdown modes for energy savings and controlled vend times
  • Programmable point of sale messages
  • Programmable coupon and token values
  • Coin and bill rejection rate counts
  • Accountability display by selection, row or machine
  • Audio support for sight impaired operators (Talker not included)
Control Systems
USB Software Upgrades and DEX Downloads

Optional Features

Safety and Security
iVend® Delivery Sensor System
Infrared sensor system virtually eliminates misvends and ensures that your customers receive their products or their money back.
Product Merchandising
High Capacity Split Coils for Candy, Gum and Mint
Splitting coils for thin products lets you double the capacity of a selection supply fast selling products like gum and mint,roll candies, candy bars and other thin items. Each coil holds 30 items.
Product Merchandising
High Capacity Can / Bottle Tray
This patented gravity fed design lets you supply fast moving 12 oz. canned beverages and lower your trips to your machine for restock. Each selection holds 25 cans. Alpine ST or VT5000 (6 Selections - 150 can total capacity) Alpine ST or VT3000 (4 Selections - 100 can total capacity)
Product Merchandising
Single Motors for Motor Pairing
Enables pairing two motors together for dispensing wide products.
Product Merchandising
Custom Tray and Coil Configurations
USI is able to custom configure your tray configuration to meet your specific merchandising needs. Consult your distributor.
Payment Systems
Greenlite Cashless Payment System
Greenlite Cashless accepts credit, debit & mobile payments with valuable telemetry and machine management tools.
Payment Systems
Coin Mech and Bill Validators
All USI equipment comes standard with a coin mech and bill validator from a leading brand. USI offers a full range of cash and credit payment system options including payment system options for use internationally.
Accessibility
Audio Interface for Sight Impaired Operators
On-board audio output of programming systems with 3.5mm connection for external headphones or speaker (not included). - FLEX controlled with 10.1" iCart touch screen interface. Add-on self-contained voice synthesizer for GVC2 and FLEX 3.5" controlled models.
Branded Storefront
Custom Graphic Wrap
Make your brand, product and marketing initiatives stand out with billboard graphics applied to your equipment.
Branded Storefront
Custom Paint Colors
Available for high volume orders. Contact USI distributor for details.
Branded Storefront
Front Kick Panel Option
Removable bottom panel provides aesthetically pleasing continuous presentation.
Branded Storefront
Standard Changeable LED Backlighted POS Window
Replace with product advertising, location branding or customer focused information. Available on Mercato, Alpine and Summit Series models.
Consumer Interfaces
inDEX Management Utility
The iCart interface comes standard with our inDEX product planogram and information management utility. This webware is designed to simply manage the content on your smart vending machine. inDEX lets you create and manage individual planograms for each machine or standardized planograms for a whole route complete with product information, ad, promotion and messaging content. (Features vary by machine model).
Sustainability
Power Managment Programming
Many models feature programmable shut down modes for off-peak or low use energy savings.

Product Specs

SpecificationsEvoke ST3
SelectionsUp to 36 items
CapacityVaries with tray configuration
Payment SystemsAll Industry standard MDB compatible devices
Data CommunicationDEX/UCS
Electrical Requirements

Domestic:  115 VAC/60Hz, 5.5 AMPS; International: 230 VAC/50Hz, 4.8 AMPS; With Heated Glass: 115 VAC/60Hz,

6.5 AMPS; International: 230 VAC/50Hz, 4.5 AMPS

RefrigerationSuper 1/3 HP, R134a or R-513a Closed System
Height72” (183 cm)
Width29.5” (75 cm)
Depth38” (97 cm)
Ship Weight*691 lbs. (313.4 kg) *Varies with tray configuration and options.
