Evoke 6

Configure My Machine

Evoke 6

Evoke Snack 6

Overview

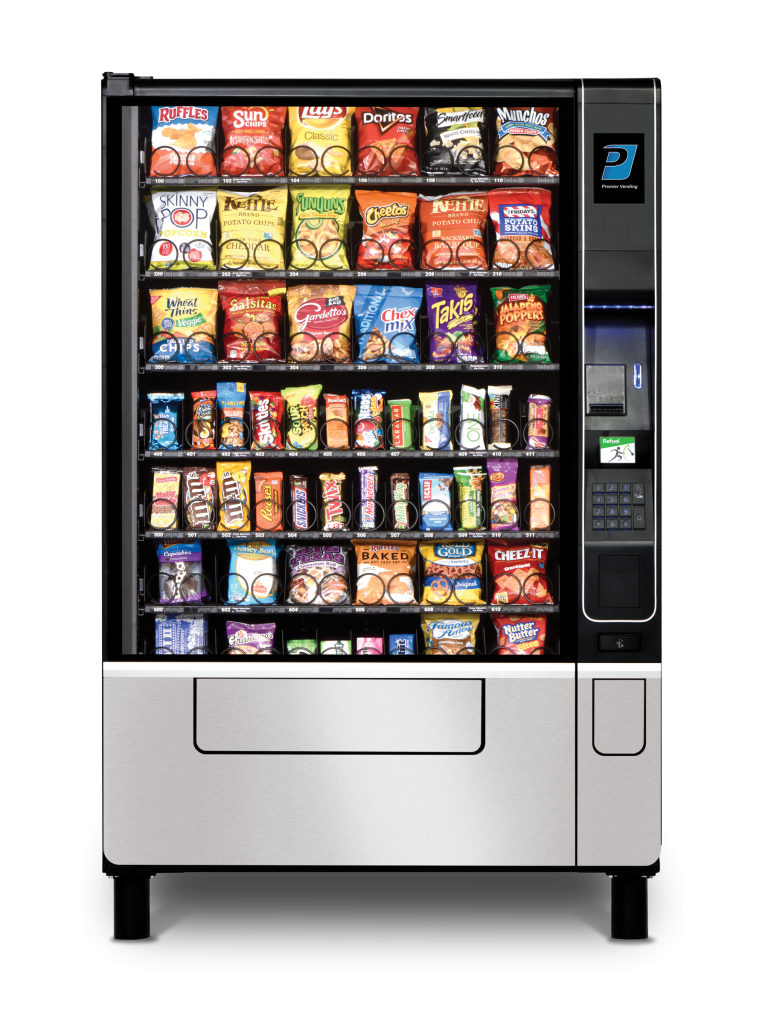

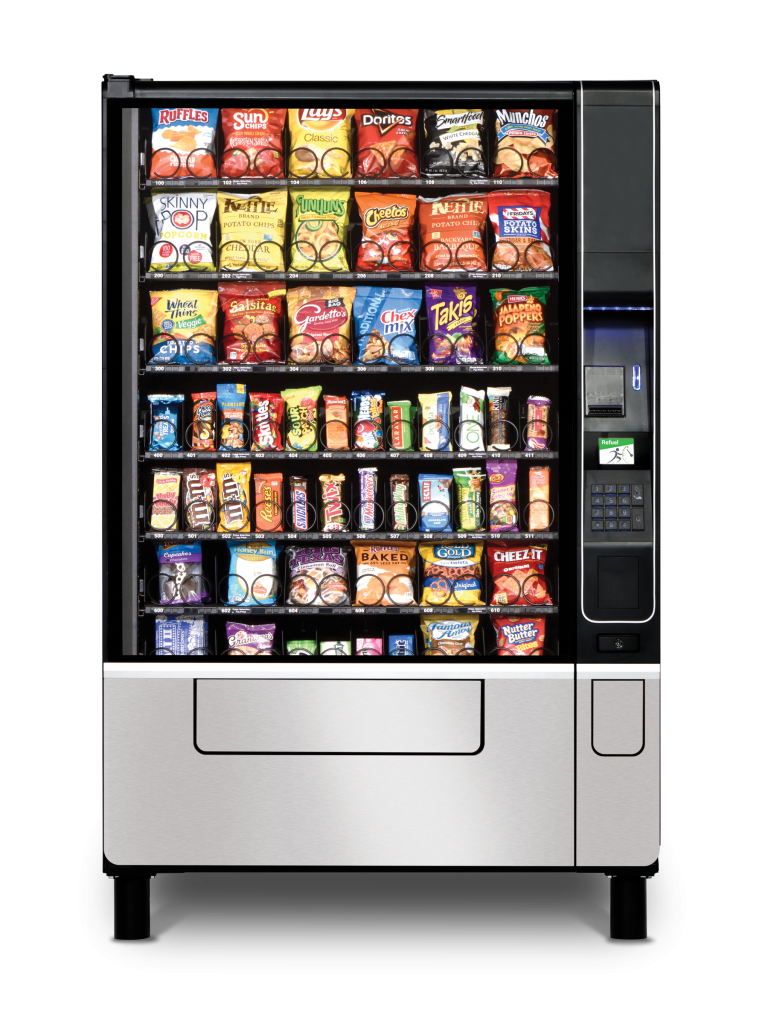

Featuring the largest merchandising window, most capacity and selections, and the latest in customer interfaces and payment system technology, the Evoke Snack 6 provides operators with the capability to generate more revenue from existing locations and secure new profitable locations.

Ideal for high traffic, high volume locations, the Evoke Snack 6 enables operators to improve operational efficiency, improve bottom-line performance, and support business expansion. With its expansive capacity of up to 733 items and 83 product selections, the Evoke Snack 6 provides the largest merchandising capability on the market with:

      • Six (6) standard Flex Shelf Technology Steel trays and 7th full-size tray option
      • 12-wide configurations for a maximum variety and product selection
      • Over 47” of vertical product space and adjustability for large size snacks

The Evoke Snack 6’s modern design attracts and engages consumers with custom graphics and 10.1” iCart touchscreen (optional) featuring:

      • Shopping cart and single selections modes
      • Calorie display before purchase
      • Product browse mode
      • Advertising options for static and video content

Standard Features

Product Merchandising
Flex Shelf Technology
USI vendors feature the most versatile trays on the market with features that make a difference in your bottom line.
  • Tilting shelves for easy loading
  • Quick change motors and dividers for in-field reconfiguration
  • Adjustable snack and candy selections
Product Merchandising
LED Showcase Lighting
Enhances product presentation and promotes sales 10% or more.
Product Merchandising
Live Product Display with LED Lighting
No hassling with finding the correct flavor label when you change product in the Summit 500 cold drink merchandiser. Simply place one of the products in the live display and you're done!
Payment Systems
Coin Mech and Bill Validators
All USI equipment comes standard with a coin mech and bill validator from a leading brand. USI offers a full range of cash and credit payment system options including payment system options for use internationally.
Payment Systems
Extra Peripheral Opening and MDB Support
Standard secondary peripheral opening lets you add your payment or ID system of choice with MDB communication to control system.
Accessibility
Controls and Payment Systems at ADA Levels
All customer interfaces and payment systems are at or below 2012 Americans with Disabilities Act mandated side access height of 46” from the floor.
Accessibility
Delivery Assist
Product is delivered at 15" via lift mechanism. Operates with one hand.
Accessibility
Ergonomic User Interface
Evoke series models incorporate 10 degree recessed user interface with currency acceptance area as well as large backlighted and Braille identified keys or optional full color screens.
Accessibility
Audio Interface for Sight Impaired Operators
On-board audio output of programming systems with 3.5mm connection for external headphones or speaker (not included). - FLEX controlled with 10.1" iCart touch screen interface. Add-on self-contained voice synthesizer for GVC2 and FLEX 3.5" controlled models.
Control Systems
Full Sales and Accounting Features
U-Select-It vending equipment features control systems designed for easy and flexible pricing, payment system control and monitoring, accountability and service.
  • Price setting by selection, row or machine
  • Free vend and Combo vend modes
  • Flexible space to selection setting
  • Time of day discounting
  • Time of day shutdown modes for energy savings and controlled vend times
  • Programmable point of sale messages
  • Programmable coupon and token values
  • Coin and bill rejection rate counts
  • Accountability display by selection, row or machine
  • Audio support for sight impaired operators (Talker not included)
Control Systems
DEX Capable
Use DEX capable upload/download devices for sales and machine service information.
Control Systems
USB Software Upgrades and DEX Downloads
Safety and Security
iVend® Delivery Sensor System
Infrared sensor system virtually eliminates misvends and ensures that your customers receive their products or their money back.
Safety and Security
Door Switch
Option on non-refrigerated models for use with controller features and add-on telemetry logging door opening events and homing of product coils.
Quality and Service
2 Year Limited Parts Warranty
U-Select-It warrants each of its vending machines to the original purchaser for indoor use under the following provisions: VendNet, U-Select-It’s warranty and service administrator, will replace or repair any part covered by the warranty which fails due to a defect in material or workmanship for two years*
Quality and Service
Manufactured in the USA
USI prides itself on manufacturing the highest quality automated dispensing equipment right in the heart of the midwest with quality components, assembled by skilled technicians dedicated to your success.
Quality and Service
Lifetime Toll-Free Technical Assistance
Each USI product is backed by toll-free technical assistance for the life of the product. Should you have questions on technical, parts or service issues help is only a phone call away.
Sustainability
Power Managment Programming
Many models feature programmable shut down modes for off-peak or low use energy savings.
Consumer Interfaces
Braille Identified Keypad
All equipment comes standard with Braille identified keypads for sight impaired use and operator programming.

Optional Features

Consumer Interfaces

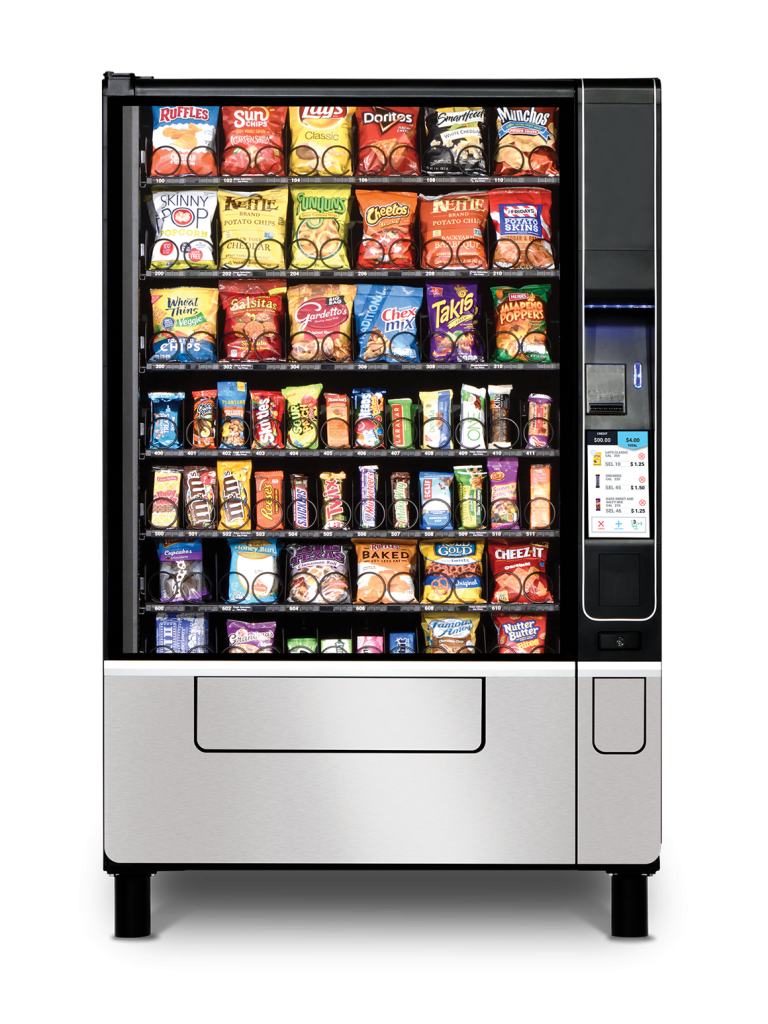

iCart 10.1″ Touchscreen Interface Option
Enhances consumer purchase experience. Available on new Evoke Snack 5 and 6 merchandisers. With Shopping Cart and Product Info Browse Mode.
Consumer Interfaces
inDEX Management Utility
The iCart interface comes standard with our inDEX product planogram and information management utility. This webware is designed to simply manage the content on your smart vending machine. inDEX lets you create and manage individual planograms for each machine or standardized planograms for a whole route complete with product information, ad, promotion and messaging content. (Features vary by machine model).
Product Merchandising

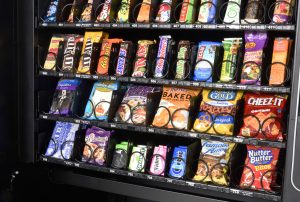

7th Full-Size Tray Option
Available on Evoke Snack 6 this full-size tray option allows greater product selection and capacity featuring all the features you need including paired motors, dual coil and single coil selections.
Product Merchandising
Gum & Mint Tray
Product Merchandising
Custom Tray and Coil Configurations
USI is able to custom configure your tray configuration to meet your specific merchandising needs. Consult your distributor.
Payment Systems
Greenlite Cashless Payment System
Greenlite Cashless accepts credit, debit & mobile payments with valuable telemetry and machine management tools.
Branded Storefront
Custom Graphic Wrap
Make your brand, product and marketing initiatives stand out with billboard graphics applied to your equipment.
Branded Storefront
Custom Paint Colors
Available for high volume orders. Contact USI distributor for details.
Branded Storefront
Custom Logo Panel
Put your customer's name in lights with this branded logo panel option. Available on Evoke Series.
Product Merchandising
Single Motors for Motor Pairing
Enables pairing two motors together for dispensing wide products.

Product Specs

Specifications Evoke Snack 6
Selections Up to 70 items (6 Tray); 82 Items (7 Tray)
Capacity

633 Items (6 Tray)

(252 Snack-Pastry/381 Candy)

773 Items (7 Tray)

(296 Snack-Pastry/477 Candy)
Payment Systems All Industry standard MDB compatible devices
Data Communication DEX/UCS

Electrical

Requirements

Domestic:  115 VAC/60Hz, 1.2 AMPS

International:  230 VAC/50Hz, 0.6 AMPS
Height 72” (183 cm)
Width 46” (116.8 cm)
Depth 35.2” (89.4 cm)
Ship Weight

*626 lbs. (283.9 kg)

*Varies with tray configuration and options.
