MM6 Kiosk

Configure My Machine

MM6 Kiosk

Overview

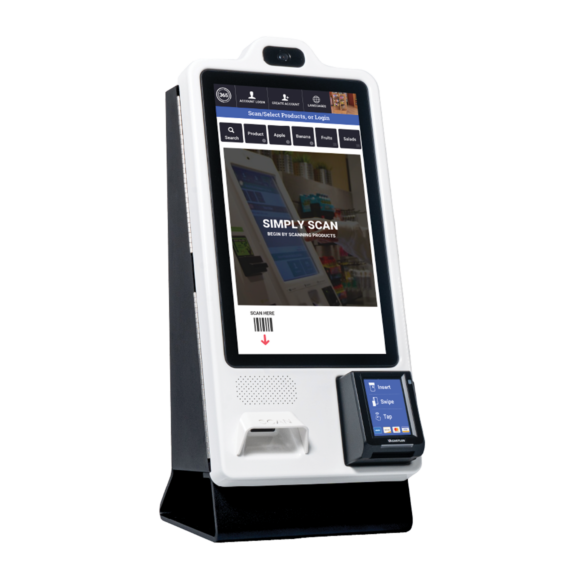

The MM6 Kiosk, powered by 365 Retail Markets, is a high-performance premium self-checkout kiosk that elevates the micro market experience. Designed for high-value and large accounts (200+ patrons), it delivers a smooth, intuitive, and visually engaging checkout process that enhances customer satisfaction and drives sales.

Featuring a large 22-inch touchscreen with an anti‑glare coating, the kiosk provides layered product menus, easy navigation, and access to key purchase details. Its high‑contrast display options and easy‑reach navigation bar support enhanced accessibility for users.

The MM6 provides a smooth, secure checkout and accepts a variety of payment methods including credit and debit cards, mobile wallets, and 365 consumer market accounts. The kiosk also includes a high‑volume barcode scanner capable of recognizing nearly all major barcode formats, whether printed, etched, or displayed on a mobile device.

To enhance safety and deter theft, the MM6 features an integrated customer‑facing camera with a wide 185‑degree view. The kiosk also includes a battery backup system to ensure continuous operation, even during power disruptions.

Scalable and flexible, the MM6 Kiosk can be paired with additional units to manage high traffic and reduce wait times. Its ability to integrate with vending machines, smart stores, and other kiosks creates a unified and connected retail environment.

Durable and built for continuous use, the MM6 supports 365 Connected Campus™, loyalty programs, custom promotions, and programmatic advertising all while delivering a smooth, premium, and modern self-checkout experience for mico markets.

Standard Features

Product Merchandising
Soft Elevator Delivery
Eliminate drop damage with the soft elevator delivery of food and beverages. The elevator lift for the soft delivery of products allows you to vend salads, bottled and canned beverages, yogurt parfaits, and other fragile items from trays that would not be possible from a traditional gravity drop machine.
Product Merchandising
Versatile Steel Beverage Tray
Adds extra versatility to your Alpine merchandisers to vend a wide variety of beverage packages not normally accomodated with stack vendors including boxed and pouch or Tetra style containers.
Product Merchandising
Flex Shelf Technology
USI vendors feature the most versatile trays on the market with features that make a difference in your bottom line.
  • Tilting shelves for easy loading
  • Quick change motors and dividers for in-field reconfiguration
  • Adjustable snack and candy selections
Product Merchandising
LED Showcase Lighting
Enhances product presentation and promotes sales 10% or more.
Payment Systems
Extra Peripheral Opening and MDB Support
Standard secondary peripheral opening lets you add your payment or ID system of choice with MDB communication to control system.
Accessibility
Controls and Payment Systems at ADA Levels
All customer interfaces and payment systems are at or below 2012 Americans with Disabilities Act mandated side access height of 46” from the floor.
Accessibility
Delivery Assist
Product is delivered at 15" via lift mechanism. Operates with one hand.
Consumer Interfaces
Braille Identified Keypad
All equipment comes standard with Braille identified keypads for sight impaired use and operator programming.
Safety and Security
iVend® Delivery Sensor System
Infrared sensor system virtually eliminates misvends and ensures that your customers receive their products or their money back.
Safety and Security
Door Switch
Option on non-refrigerated models for use with controller features and add-on telemetry logging door opening events and homing of product coils.
Safety and Security
Health Safety Feature
USI refrigerated and frozen merchandisers feature health safety temperature sensing technology to prevent the sale of perishable food if the air temperature inside the food vendor compartment rises above the Health Safety temperature limit for more than 15 minutes.
Quality and Service
2 Year Limited Parts Warranty
U-Select-It warrants each of its vending machines to the original purchaser for indoor use under the following provisions: VendNet, U-Select-It’s warranty and service administrator, will replace or repair any part covered by the warranty which fails due to a defect in material or workmanship for two years*
Quality and Service
Manufactured in the USA
USI prides itself on manufacturing the highest quality automated dispensing equipment right in the heart of the midwest with quality components, assembled by skilled technicians dedicated to your success.
Quality and Service
Lifetime Toll-Free Technical Assistance
Each USI product is backed by toll-free technical assistance for the life of the product. Should you have questions on technical, parts or service issues help is only a phone call away.
Sustainability
Eco-friendly Insulation Process
BASF Autofroth® foaming process features superior insulating properties and zero-ozone-depleting technology, utilizing blowing agents approved by the EPA’s SNAP program.
Control Systems
DEX Capable
Use DEX capable upload/download devices for sales and machine service information.
Control Systems
Full Sales and Accounting Features
U-Select-It vending equipment features control systems designed for easy and flexible pricing, payment system control and monitoring, accountability and service.
  • Price setting by selection, row or machine
  • Free vend and Combo vend modes
  • Flexible space to selection setting
  • Time of day discounting
  • Time of day shutdown modes for energy savings and controlled vend times
  • Programmable point of sale messages
  • Programmable coupon and token values
  • Coin and bill rejection rate counts
  • Accountability display by selection, row or machine
  • Audio support for sight impaired operators (Talker not included)
Control Systems
USB Software Upgrades and DEX Downloads

Optional Features

Consumer Interfaces
iCart 7″ Touchscreen Interface Option
Enhances consumer purchase experience. Available on Mercato and Alpine Series snack and food merchandisers. Communicates purchase information & messages to consumer with Shopping Cart and Product Info Browse Mode.
Product Merchandising
High Capacity Split Coils for Candy, Gum and Mint
Splitting coils for thin products lets you double the capacity of a selection supply fast selling products like gum and mint,roll candies, candy bars and other thin items. Each coil holds 30 items.
Product Merchandising
High Capacity Can / Bottle Tray
This patented gravity fed design lets you supply fast moving 12 oz. canned beverages and lower your trips to your machine for restock. Each selection holds 25 cans. Alpine ST or VT5000 (6 Selections - 150 can total capacity) Alpine ST or VT3000 (4 Selections - 100 can total capacity)
Product Merchandising
Single Motors for Motor Pairing
Enables pairing two motors together for dispensing wide products.
Product Merchandising
Custom Tray and Coil Configurations
USI is able to custom configure your tray configuration to meet your specific merchandising needs. Consult your distributor.
Payment Systems
Greenlite Cashless Payment System
Greenlite Cashless accepts credit, debit & mobile payments with valuable telemetry and machine management tools.
Payment Systems
Coin Mech and Bill Validators
All USI equipment comes standard with a coin mech and bill validator from a leading brand. USI offers a full range of cash and credit payment system options including payment system options for use internationally.
Accessibility
Audio Interface for Sight Impaired Operators
On-board audio output of programming systems with 3.5mm connection for external headphones or speaker (not included). - FLEX controlled with 10.1" iCart touch screen interface. Add-on self-contained voice synthesizer for GVC2 and FLEX 3.5" controlled models.
Branded Storefront
Custom Graphic Wrap
Make your brand, product and marketing initiatives stand out with billboard graphics applied to your equipment.
Branded Storefront
Custom Paint Colors
Available for high volume orders. Contact USI distributor for details.
Branded Storefront
Front Kick Panel Option
Removable bottom panel provides aesthetically pleasing continuous presentation.
Branded Storefront
Standard Changeable LED Backlighted POS Window
Replace with product advertising, location branding or customer focused information. Available on Mercato, Alpine and Summit Series models.
Consumer Interfaces
inDEX Management Utility
The iCart interface comes standard with our inDEX product planogram and information management utility. This webware is designed to simply manage the content on your smart vending machine. inDEX lets you create and manage individual planograms for each machine or standardized planograms for a whole route complete with product information, ad, promotion and messaging content. (Features vary by machine model).
Sustainability
Power Managment Programming
Many models feature programmable shut down modes for off-peak or low use energy savings.

Product Specs

Specifications MM6 Kiosk
Housing Scratch-resistant ABS with UV cap
Communication Ethernet RJ45
Dimensions (HxWxD) 29.75” x 13.75” x 15.5”
Power 120V AC 3-prong grounded outlet (15 amps service)
Weight 51 lbs (59 lbs boxed)
Key Components
Data processing High-speed, lightweight, ultra-quiet industrial PC
Touchscreen 22” MicroTouch touchscreen mounted in portrait format, with anti-glare coating
Card reader 3-in-1 card reader Swipe/Tap/Insert with Apple Pay & Google Pay support
Barcode scanner High-volume scanner capable of reading most barcodes, including 1D, 2D, QR, and direct part marks; reads barcodes presented on any surface, whether it’s printed on paper, etched into a product, or displayed on a mobile phone screen
Camera (integrated) Customer-facing fish eye camera, able to view a wide range of the customer area
Router Cisco Meraki security appliance with 4 ports and 1 POE connection
