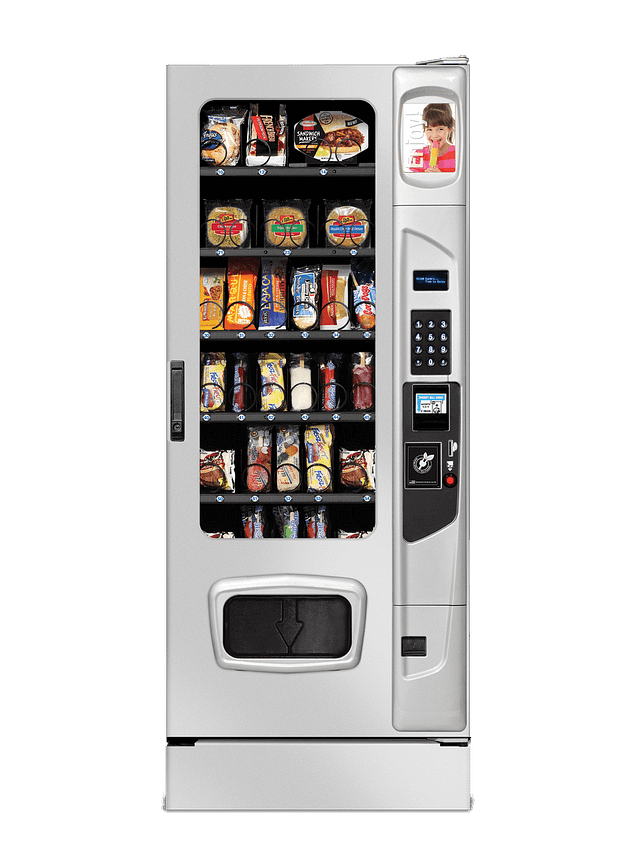

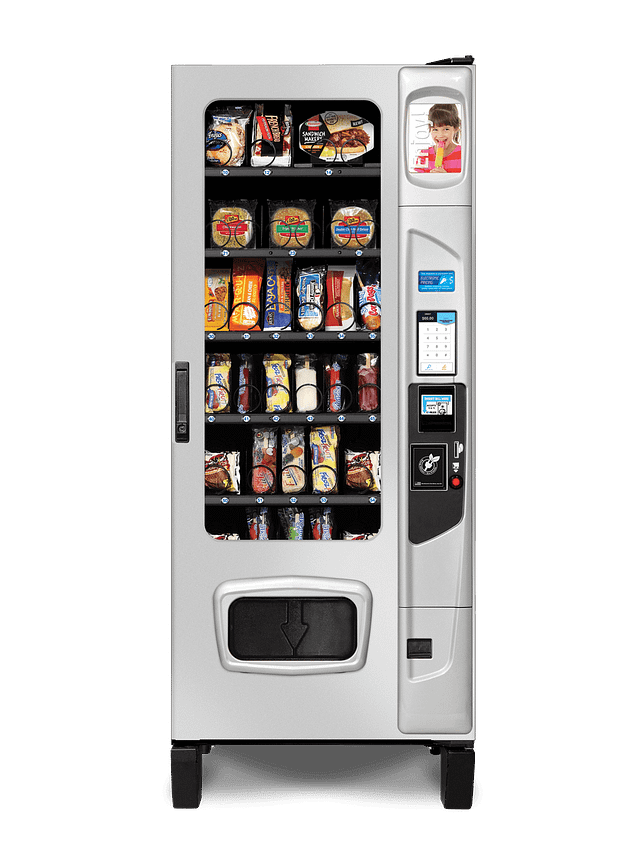

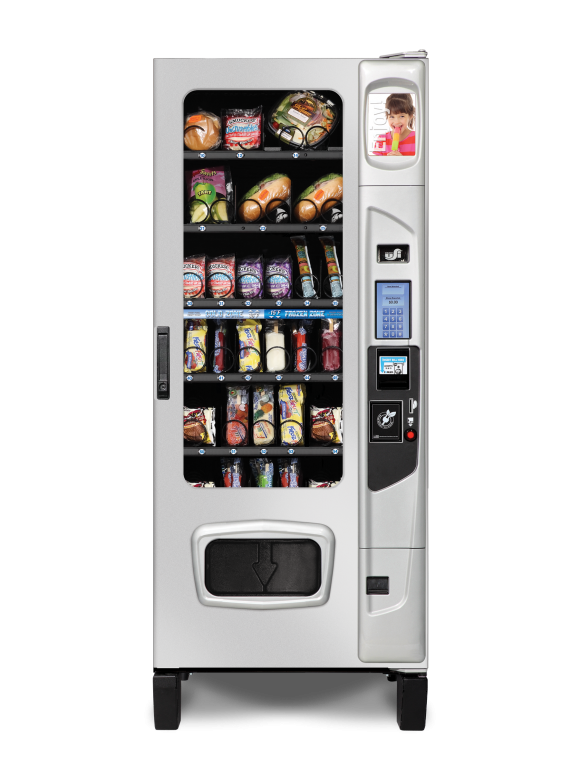

Evoke Frozen Food Vending Machine from U-Select-It

Overview

When it comes to providing locations with frozen meals and deserts there are few solutions as versatile as the Evoke Frozen Food. It’s many machines in one. Depending on your location needs, it can provide all fresh food, all frozen meals and deserts, or a combination of refrigerated and frozen at the same time. No other machine on the market has this capability.

The compact footprint of the Evoke Frozen Food allows it to move easily through most entryways.  And despite it’s small footprint, the Evoke Frozen Food has a high product capacity of up to 540 items and 36 unique product selections. Plus, the Evoke Frozen Food is easily convertible in-field to fully refrigerated or fully frozen.

Standard Features

Product Merchandising
LED Showcase Lighting
Enhances product presentation and promotes sales 10% or more.
Product Merchandising
Live Product Display with LED Lighting
No hassling with finding the correct flavor label when you change product in the Summit 500 cold drink merchandiser. Simply place one of the products in the live display and you're done!
Payment Systems
Coin Mech and Bill Validators
All USI equipment comes standard with a coin mech and bill validator from a leading brand. USI offers a full range of cash and credit payment system options including payment system options for use internationally.
Payment Systems
Extra Peripheral Opening and MDB Support
Standard secondary peripheral opening lets you add your payment or ID system of choice with MDB communication to control system.
Accessibility
Controls and Payment Systems at ADA Levels
All customer interfaces and payment systems are at or below 2012 Americans with Disabilities Act mandated side access height of 46” from the floor.
Branded Storefront
Standard Changeable LED Backlighted POS Window
Replace with product advertising, location branding or customer focused information. Available on Mercato, Alpine and Summit Series models.
Safety and Security
iVend® Delivery Sensor System
Infrared sensor system virtually eliminates misvends and ensures that your customers receive their products or their money back.
Safety and Security
Heated Glass
An automatic controller/wiring harness kit allows heating of the glass, in order to eliminate condensation and fogging in high humidity locations.  The automatic controller complies with applicable U.S. Department of Energy requirements and delivers energy savings by only activating when the humidity reaches a certain level and disengaging when the humidity returns to an optimal level.
Safety and Security
Door Switch
Option on non-refrigerated models for use with controller features and add-on telemetry logging door opening events and homing of product coils.
Safety and Security
Health Safety Feature
USI refrigerated and frozen merchandisers feature health safety temperature sensing technology to prevent the sale of perishable food if the air temperature inside the food vendor compartment rises above the Health Safety temperature limit for more than 15 minutes.
Quality and Service
2 Year Limited Parts Warranty
U-Select-It warrants each of its vending machines to the original purchaser for indoor use under the following provisions: VendNet, U-Select-It’s warranty and service administrator, will replace or repair any part covered by the warranty which fails due to a defect in material or workmanship for two years*
Quality and Service
Manufactured in the USA
USI prides itself on manufacturing the highest quality automated dispensing equipment right in the heart of the midwest with quality components, assembled by skilled technicians dedicated to your success.
Quality and Service
Lifetime Toll-Free Technical Assistance
Each USI product is backed by toll-free technical assistance for the life of the product. Should you have questions on technical, parts or service issues help is only a phone call away.
Sustainability
ENERGY STAR® Rated
Many USI refrigerated products meet Department of Energy ENERGY STAR® rating. Consult your distributor for your needs.
Sustainability
Power Managment Programming
Many models feature programmable shut down modes for off-peak or low use energy savings.
Sustainability
Eco-friendly Insulation Process
BASF Autofroth® foaming process features superior insulating properties and zero-ozone-depleting technology, utilizing blowing agents approved by the EPA’s SNAP program.
Control Systems
DEX Capable
Use DEX capable upload/download devices for sales and machine service information.
Consumer Interfaces
Braille Identified Keypad
All equipment comes standard with Braille identified keypads for sight impaired use and operator programming.

Optional Features

Consumer Interfaces
iCart 7″ Touchscreen Interface Option
Enhances consumer purchase experience. Available on Mercato and Alpine Series snack and food merchandisers. Communicates purchase information & messages to consumer with Shopping Cart and Product Info Browse Mode.
Consumer Interfaces
inDEX Management Utility
The iCart interface comes standard with our inDEX product planogram and information management utility. This webware is designed to simply manage the content on your smart vending machine. inDEX lets you create and manage individual planograms for each machine or standardized planograms for a whole route complete with product information, ad, promotion and messaging content. (Features vary by machine model).
Product Merchandising
Custom Tray and Coil Configurations
USI is able to custom configure your tray configuration to meet your specific merchandising needs. Consult your distributor.
Payment Systems
Greenlite Cashless Payment System
Greenlite Cashless accepts credit, debit & mobile payments with valuable telemetry and machine management tools.
Accessibility
Audio Interface for Sight Impaired Operators
On-board audio output of programming systems with 3.5mm connection for external headphones or speaker (not included). - FLEX controlled with 10.1" iCart touch screen interface. Add-on self-contained voice synthesizer for GVC2 and FLEX 3.5" controlled models.
Control Systems
Full Sales and Accounting Features
U-Select-It vending equipment features control systems designed for easy and flexible pricing, payment system control and monitoring, accountability and service.
  • Price setting by selection, row or machine
  • Free vend and Combo vend modes
  • Flexible space to selection setting
  • Time of day discounting
  • Time of day shutdown modes for energy savings and controlled vend times
  • Programmable point of sale messages
  • Programmable coupon and token values
  • Coin and bill rejection rate counts
  • Accountability display by selection, row or machine
  • Audio support for sight impaired operators (Talker not included)
Control Systems
USB Software Upgrades and DEX Downloads
Branded Storefront
Custom Graphic Wrap
Make your brand, product and marketing initiatives stand out with billboard graphics applied to your equipment.
Branded Storefront
Custom Paint Colors
Available for high volume orders. Contact USI distributor for details.
Branded Storefront
Front Kick Panel Option
Removable bottom panel provides aesthetically pleasing continuous presentation.
Safety and Security
Outdoor High Security Package
Impact resistant Lexan window cover, rain guards and anti-pry covers provide superior resistance to the elements, vandals and thieves. *Some features vary by model please consult USI for details.
Product Merchandising
Single Motors for Motor Pairing
Enables pairing two motors together for dispensing wide products.

Product Specs

Specifications Evoke Frozen Food
Selections Up to 36 items
Standard Capacity 320 Items, Configurable up to 540
Payment Systems All Industry standard MDB compatible devices
Data Communication DEX/UCS
Electrical

Requirements

 Domestic:  115 VAC/60Hz, 13 AMPS

International:  230 VAC/50Hz, 6.5 AMPS
Refrigeration 5/8 HP, R-404a System
Height 72” (183 cm)
Width 29.5” (75 cm)
Depth 38” (97 cm)
Ship Weight *680 lbs. (308.4 kg)

*Varies with tray configuration and options.
